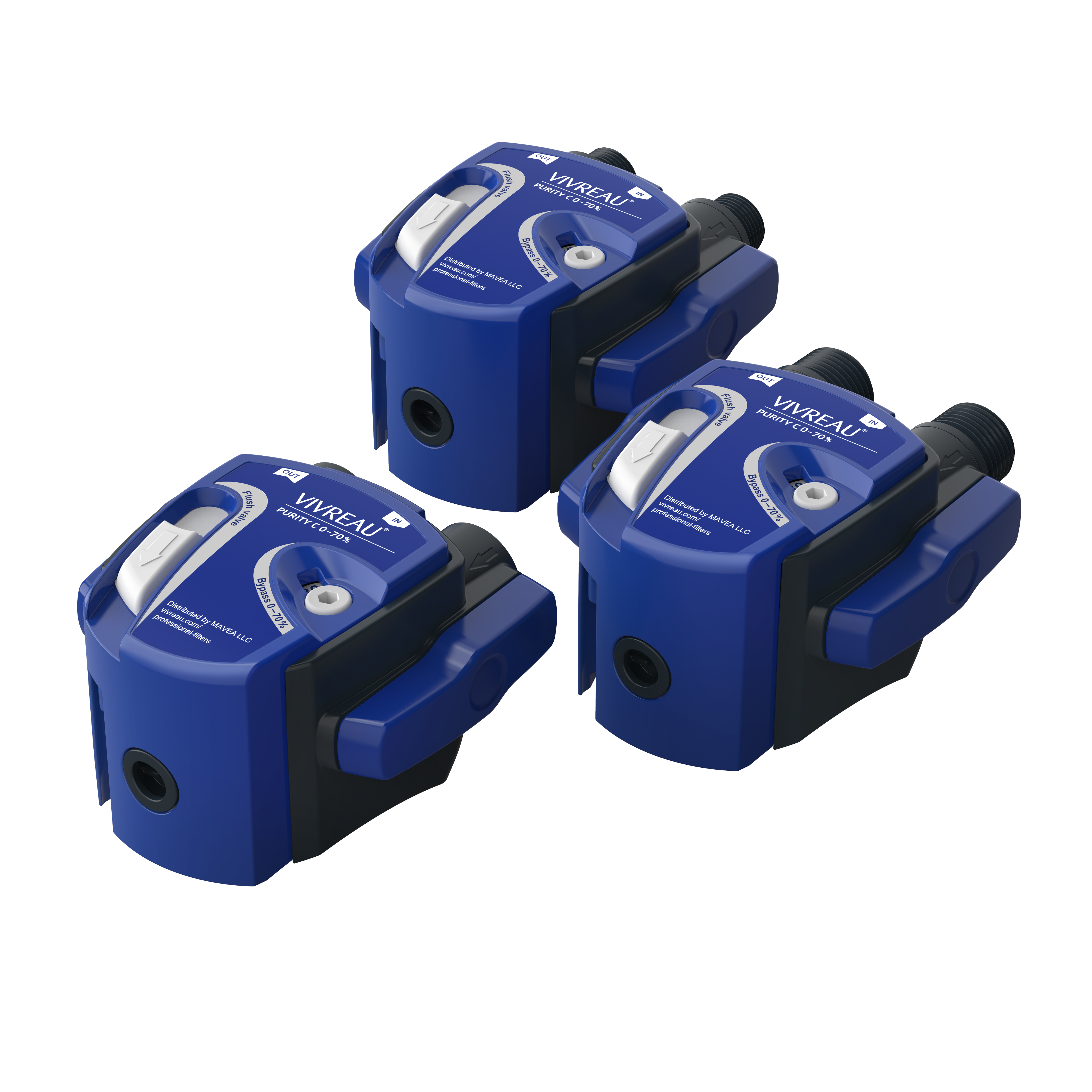

Vivreau NPT Male 1/2 0-70% Variable Head

By providing various connections and bypass settings, VIVREAU Professional filter heads form the basis for the PURITY C filter cartridge range. All filter heads enable a variable bypass setting of 0-70% and are available with either 1/2 NPT, G 3/8’’ or John Guest connections. This guarantees you an optimum water quality for every application (coffee and espresso machines, vending machines, combi ovens, conventional ovens and coolers).

Benefits

• Various head designs for targeted adaptation to individual requirements
• Simple to handle with rapid-change system
• Innovative locking handle for reliable adjustment
• Water inlet and outlet on one filter head side for space-saving installation
• Integrated flush and bleed valve
• Simple pre-rinsing and bleeding
• Fast and convenient filter exchange without the need for tools
• Water short-cut if cartridge is not inserted

Instructions

Three simple steps for optimised water (07/21 Errors and omissions excepted).

Two minutes for your new water filter:

• To exchange the filter cartridge, rotate the locking handle to divert the water and release the cartridge.
• Press the flush valve and depressurise the filter. Remove the filter cartridge from the filter head.
• The filter cartridge can be pivoted by 90° in the wall mounting bracket for removal. Remove the protective cap from the new filter cartridge. Note the next exchange date in the date field on the filter cartridge.
• Insert the filter cartridge vertically into the filter head and turn the locking handle until you hear it click.
• Operate the flush valve and rinse the filter system until the filtered water runs clear without bubbles – done!

Downloads

• Purity C Filter Head PDF
